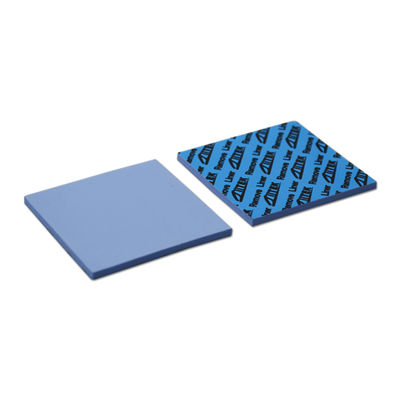

High Quality High Conductive Thermal Silicone Pad Cooling Gap Filler For CPU Premium Insulation Element

High Quality High Conductive Thermal Silicone Pad Cooling Gap Filler For CPU Premium Insulation Element

Duży Obraz :  High Quality High Conductive Thermal Silicone Pad Cooling Gap Filler For CPU Premium Insulation Element

Szczegóły Produktu:
Miejsce pochodzenia: CHINY
Nazwa handlowa: ZIITEK
Orzecznictwo: UL and RoHs
Numer modelu: Seria TIF100-05S
Zapłata:
Minimalne zamówienie: 1000pcs
Cena: Negocjowalne
Szczegóły pakowania: 1000pcs/torba
Czas dostawy: 3-5 dni roboczych
Możliwość Supply: 100000pcs/dzień
Szczegółowy opis produktu
Nazwa produktów: Wysokiej jakości wysokoprzewodząca podkładka silikonowa termiczna wypełniająca szczelinę chłodzącą d Kolor: Niebieski
Słowa kluczowe: Wypełniacz termiczny Próbka: Próbka wolna
Ciągła temp. użytkowania: -45 do 200 ℃ Twardość: 45 brzeg 00
Przewodność cieplna: 1,5 W/mK Grubość: 0,020 "(0,5 mm) ~ 0,200" (5,0 mm)
Aplikacja: Element izolujący procesor Premium

High Quality High Conductive Thermal Silicone Pad Cooling Gap Filler For CPU Premium Insulation Element

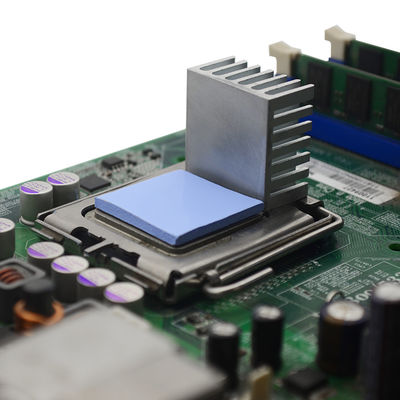

The TIF®100-05S Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.


Features


> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized


Applications


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU

> Display card
> Mainboard/mother board
> Notebook
> Power supply



Typical Properties of TIF®100-05S Series
Property Value Test method
Color Blue ******
Construction &Compostion Ceramic filled silicone elastomer ******
Thickness range 0.020"(0.5mm)~0.200"(0.50mm) ASTM D374
Specific Gravity 2.3g/cc ASTM D297
Hardness 45 Shore 00 ASTM 2240
Continuos Use Temp -45 to 200℃ ******
Dielectric Breakdown Voltage > 5500 VAC ASTM D149
Dielectric Constant 4.5 MHz ASTM D150
Volume Resistivity 1.0 X1012 Ohm-meter ASTM D257
Flame rating 94 V0 UL E331100
Outgassing(TML) 0.35% ASTM E595
Thermal conductivity 1.5 W/m-K ASTM D5470



Product Specification

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes:8" x 16"(203mm x406mm)

Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.

High Quality High Conductive Thermal Silicone Pad Cooling Gap Filler For CPU Premium Insulation Element 0

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
