Szczegóły Produktu:
|
| Nazwa produktów: | Szara podkładka termoizolacyjna zapewniająca doskonałą przewodność cieplną 15,0 W/mK i elastyczną el | Przewodność cieplna: | 15,0 W/mK |
|---|---|---|---|
| Aplikacja: | Elektroniczne rozwiązania chłodzące | Słowa kluczowe: | podkładka termiczna |
| Kolor: | szary | Twardość: | 45 brzeg 00 |
| Środek ciężkości: | 3,3 g/cm³ | Zalecana temperatura pracy |Temperatura (%22C): | -40 do 200 ℃ |
| Napięcie przebicia (V/mm): | ≥5500 VAC |

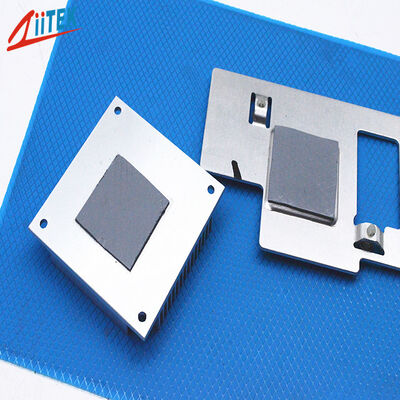

Gray Thermal Gap Pad Offering Excellent 15.0W/mK Thermal Conductivity and Flexible Elasticity for Electronic Cooling Solutions
Dongguan Ziitek Electronic Material and Technology Ltd. is a professional manufacturer of thermal interface materials with many years of industry experience. Integrating R&D, production, sales, and technical services, the company offers a comprehensive product line covering thermally conductive silicone pads, thermal conductive grease/paste,thermally conductive graphite sheets, phase change materials, thermally conductive plastics, thermal gel , silicone foam, silicone-free thermal pads etc.We adhere to strict quality standards and provide customized solutions based on customer requirements. Our products are widely used in electronics, new energy, telecommunications, industrial control, and other fields, earning the trust of customers both domestically and internationally through our proven capabilities.

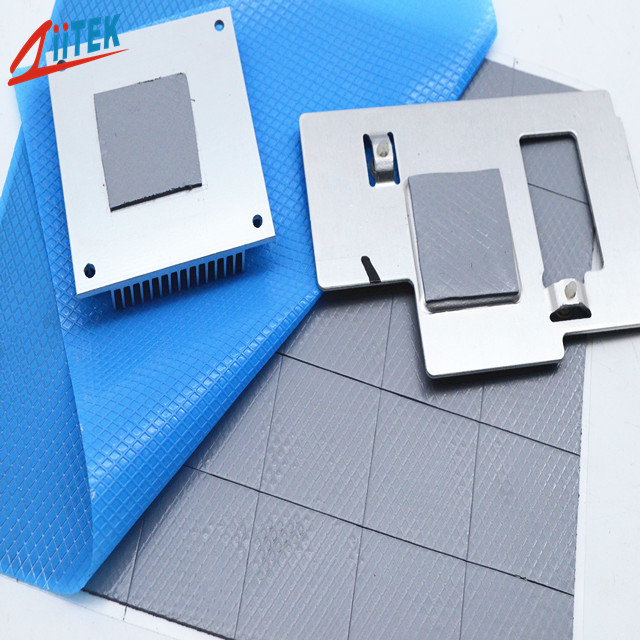

| Typical Properties of TIF®800HS Series | |||
| Property | Value | Test method | |
| Color | Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.3 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.030 | 0.040~0.200 | ASTM D374 |
| 0.75 | 1.00~5.00 | ||
| Hardness (Shroe 00) | 45 | 45 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant@ 1MHz | 9.0 | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 15.0 W/m-K | ASTM D5470 | |
| 15.0 W/m-K | ISO22007 | ||
