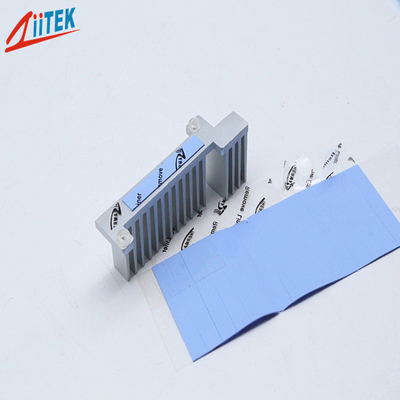

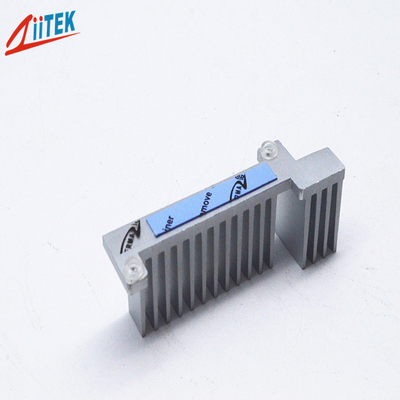

2.6W/M.K Cooling Gap Filler Pad Insulation Silicone High Conductive Thermal Pad For Car Battery & Power Supply

2.6W/M.K Cooling Gap Filler Pad Insulation Silicone High Conductive Thermal Pad For Car Battery & Power Supply

Duży Obraz :  2.6W/M.K Cooling Gap Filler Pad Insulation Silicone High Conductive Thermal Pad For Car Battery & Power Supply

Szczegóły Produktu:
Place of Origin: China
Nazwa handlowa: ZIITEK
Orzecznictwo: UL and RoHs
Model Number: TIF520BS
Zapłata:
Minimum Order Quantity: 1000pcs
Cena: Negocjowalne
Packaging Details: 1000pcs/bag
Delivery Time: 3-5work days
Supply Ability: 10000/day
Szczegółowy opis produktu
Products name: 2.6W/M.K Cooling Gap Filler Pad Insulation Silicone High Conductive Thermal Pad For Car Battery & Power Supply Application: Car Battery & Power Supply
Continuos Use Temp: -45℃ to 200℃ Density: 3.0g/cc
Hardness: 13 Shore 00 Color: Blue
Thermal conductivity& Compostion: 2.6W/m-K Thickness: 0.02inch/(0.5mmT)
Construction: Ceramic filled silicone elastomer Keywords: Thermal Pad

2.6W/M.K Cooling Gap Filler Pad Insulation Silicone High Conductive Thermal Pad For Car Battery & Power Supply



TIFTM520BS thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -45℃~200℃ and meet the requirement of UL94V0.


Features:

> Good thermal conductive : 2.6W/mK
> Naturally tacky needing no further adhesive coating

> Soft and Compressible for low stress applications
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized



Applications
> Cooling components to the
> chassis of frame
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
> IT infrastructure

Typical Properties of TIFTM520BS
Color Blue Visual
Construction & Compostion Ceramic filled silicone elastomer *******
Density 3.0g/cc ASTM D297
Thickness range 0.02inch /(0.5mmT) ASTM C351
Hardness 13 Shore 00 ASTM 2240
Dielectric Breakdown Voltage >5500 VAC ASTM D412
Operating Temp -45 ~200℃ *******
Dielectric Constant 5.0 MHz ASTM D150
Volume Resistivity ≥2.0X1013Ohm-meter ASTM D257
Fire rating 94 V0 equivalent UL
Thermal conductivity 2.6W/mK ASTM D5470



Product Specifications
Standard Thickness:

0.02 to 0.20 (0.50 to 5.00 mm) with increments of 0.01 (0.25 mm).



Standard Size:

8"X16"(203 mm×406 mm).


Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment). DC1 (Single-sided hardening).

Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
Notes: FG (Fiberglass)provides enhanced strength, suitable for materials with thicknesses of 0.01 to 0.02 inch (0.25 to 0.50 mm).
The TIF series is available in custom shapes and various forms.

For other thicknesses or moreinformation. please contact us.

2.6W/M.K Cooling Gap Filler Pad Insulation Silicone High Conductive Thermal Pad For Car Battery & Power Supply 0
Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
