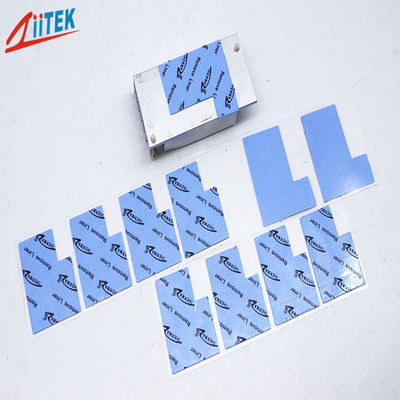

Economical Soft and Compressible Blue Thermal Silicone Pad for High Conductive Gap Filler Applications

Economical Soft and Compressible Blue Thermal Silicone Pad for High Conductive Gap Filler Applications

Duży Obraz :  Economical Soft and Compressible Blue Thermal Silicone Pad for High Conductive Gap Filler Applications

Szczegóły Produktu:
Miejsce pochodzenia: CHINY
Nazwa handlowa: ZIITEK
Orzecznictwo: UL and RoHs
Numer modelu: Seria TIF100-05ES
Zapłata:
Minimalne zamówienie: 1000pcs
Cena: Negocjowalne
Szczegóły pakowania: 1000pcs/torba
Czas dostawy: 3-5 dni roboczych
Możliwość Supply: 100000pcs/dzień
Szczegółowy opis produktu
Nazwa produktów: Ekonomiczny 1,5 W sam podkładka silikonowa przewodząca przepustnica termiczna podkładka silikonowa W Twardość: 12±5 Shore 00
Próbka: Próbka wolna Grubość: 0,020 "(0,5 mm) ~ 0,200" (5,0 mm)
Słowa kluczowe: silikonowa podkładka termiczna Przewodność cieplna: 1,5 W/mK
Ciągła temp. użytkowania: -45 do 200 ℃ Kolor: Niebieski
Aplikacja: Moduły pamięci, urządzenia do przechowywania masy itp.
Podkreślić:

1.5W thermal silicone pad

,

thermal conductive gap filler

,

high conductive silicone thermal pad

Economical 1.5W Thermal Silicone Pad Thermal Conductive Gap Filler Silicone Pad High Conductive Silicone Thermal Pad



The TIF®100-05ES Series is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy.This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.


Features


> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Moldability for complex parts
> Outstanding thermal performance
> High tack surface reduces contact resistance

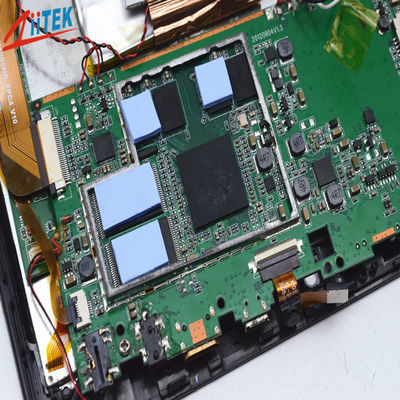

Applications


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware

> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
> IT infrastructure



Typical Properties of TIF®100-05ES Series
Property Value Test method
Color Blue ******
Construction &Compostion Ceramic filled silicone elastomer ******
Thickness range 0.020"(0.5mm)~0.200"(0.50mm) ASTM D374
Specific Gravity 2.0g/cc ASTM D297
Hardness 12±5 Shore 00 ASTM 2240
Continuos Use Temp -45 to 200℃ ******
Dielectric Breakdown Voltage > 5500 VAC ASTM D149
Dielectric Constant 4.5 MHz ASTM D150
Volume Resistivity 1.0 X1012 Ohm-meter ASTM D257
Flame rating 94 V0 UL E331100
Outgassing(TML) 0.35% ASTM E595
Thermal conductivity 1.5 W/m-K ASTM D5470



Product Specification

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes:8" x 16"(203mm x406mm)

Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.



Economical Soft and Compressible Blue Thermal Silicone Pad for High Conductive Gap Filler Applications 0

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated



Company profile



With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.



Factory Size:8000~10,000 square meters

Factory Country/Region:No.12, Xiju Road, Hengli Township, Dongguan City, Guangdong Province, P.R.China

Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples



After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.



Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL



Independent R&D team
