Szczegóły Produktu:
Zapłata:
|
| Nazwa produktu: | Silikonowa podkładka termoprzewodząca z włókna szklanego wzmacnia arkusz izolacji termicznej do chło | Kolor: | Różowy |
|---|---|---|---|
| Przewodność cieplna: | 6,0 W/mK | Aplikacja: | Chłodzenie procesora/GPU komputera |
| Stała dielektryczna @1MHz: | 8.4 | twardość: | 45 SHORE00 |
| Słowa kluczowe: | Podkładka przewodząca ciepło | Gęstość (g/cm3): | 3,38 |

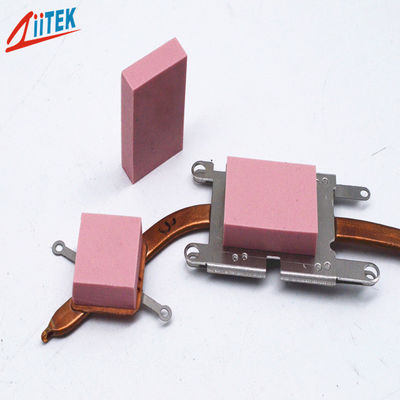

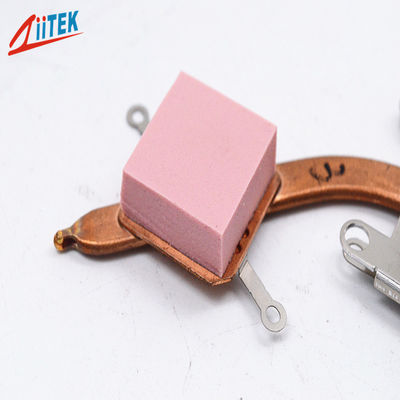

Silicone Thermal Conductive Pad Fiberglass Reinforce Thermal Insulation Sheet For Computer CPU/GPU Cooling
Company Profile
Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.
The TIF®100 6045-50 Series use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.
Features:
> Good thermal conductivity: 6.0 W/mK
> Good flexibility and fillability
> Self-adhesive without the need for
> additional surface adhesives
> Good insulation performance
Applications
> Power tools
> Network communication products
> Electric vehicle batteries
> Computer CPU/GPU Cooling
> New energy vehicle power systems
| Typical Properties of TIF®100 6045-50 Series | |||
| Property | Value | Test method | |
| Color | Pink | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.38 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020(0.25~0.5) | 0.030~0.200 (0.75~5.0) | ASTM D374 |
| Hardness | 70 Shore 00 | 45 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -40 to 200℃ | *** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 8.4 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1014 Ohm-meter | ASTM D257 | |
| Fire rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 6.0 W/m-K | ASTM D5470 | |
Product Specifications
Standard Thickness: 0.010"(0.25 mm)-0.200" (5.00 mm)
with increments of 0.010 inch (0.25 mm).
Standard Size: 16"×16" (406 mm ×406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.For other thicknesses or more information, please contact us.
