Szczegóły Produktu:
Zapłata:
|
| Nazwa produktu: | Termiczna podkładka silikonowa 5,0 W Arkusz rozpraszający ciepło o wysokiej przewodności dla serweró | Kolor: | Ciemnoszary |
|---|---|---|---|
| Aplikacja: | Serwery AI, falowniki, urządzenia telekomunikacyjne | Przewodność cieplna: | 5,0 W/mK |
| Gęstość (g/cm3): | 3.4 | Stała dielektryczna @1MHz: | 4.5 |
| Twardość: | 65 brzeg00 | Słowa kluczowe: | Podkładka silikonowa termicznie |

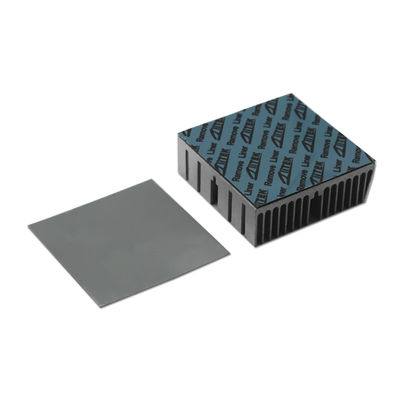

Thermal Silicone Pad 5.0W High Conductivity Heat Dissipation Sheet For AI Servers, Inverters, Telecom Devices
Company Profile
With professional R&D capabilities and many year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.
The TIF®500-50-11US Series is an ultra soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with extreme gel grade flexibility to achieve a perfect fit with low stress.It is suitable for solving problems such as large tolerances,uneven surfaces, and susceptibility of precision components to mechanical damage in high-precision assembly.
Features:
> Good thermal conductivity: 5.0W/mK
> Ultra soft and highly compliant
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance
Applications
> AI Servers, Inverters, Telecom Devices
> Power tools
> Network communication products
> Electric vehicle batteries Computer CPU/GPU Cooling
> New energy vehicle power systems
| Typical Properties of TIF®500-50-11US Series | |||
| Property | Value | Test method | |
| Color | Dark Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.4 | ASTM D792 | |
| Thickness Range(inch/mm) |
0.010~0.020 (0.25~0.50) |
0.030~0.200 (0.75~5.0) | ASTM D374 |
| Hardness | 65 Shore 00 | 20 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 4.5 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 5.0 W/m-K | ASTM D5470 | |
|
5.0 W/m-K |
ISO22007 | ||
Product Specifications
Standard Thickness: 0.010"(0.25 mm)-0.20" (5.00 mm) with increments of 0.010 inch (0.25 mm).
Standard Size: 16"×16" (406 mm ×406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
