Szczegóły Produktu:
Zapłata:
|
| Nazwa produktu: | Wypełniacz szczelin odprowadzający ciepło termoprzewodząca podkładka silikonowa Gpu Cpu Led arkusz t | Słowa kluczowe: | Podkładka silikonowa termicznie |
|---|---|---|---|
| Budowa i kompostowanie: | Elastomer silikonowy z wypełnieniem ceramicznym | Przewodność cieplna: | 5,0 W/mK |
| Twardość: | 65 Brzeg 00 | Zakres grubości: | 0,25 ~ 5,0 mm (0,010 ~ 0,20 cala) |
| Kolor: | szary | Zastosowanie: | Dioda LED procesora graficznego rozpraszająca ciepło |

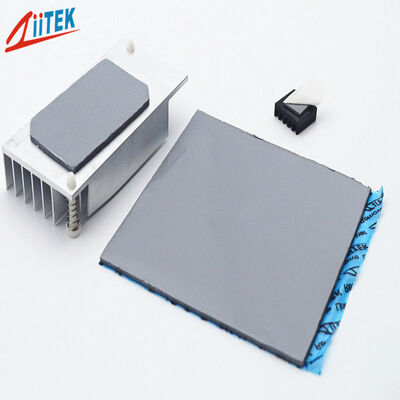

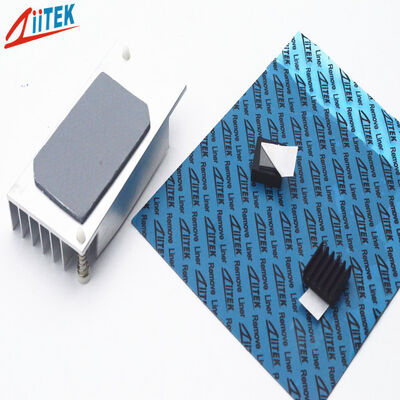

Heat Dissipation Gap Filler Thermal Conductive Silicone Pad Gpu Cpu Led Thermal Sheet Mat Interface Material Soft Thermal Pads
Company Profile
With professional R&D capabilities and many year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.
Products description
TIF®500-50-10S Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with exceptional gel-level softness,achieving a perfectly low-stress fit. It is suitable for addressing issues such as large tolerances, uneven surfaces,and the susceptibility of precision components to mechanical damage in high-precision assemblies.
Features:
> High thermal conductivity
> Super soft and highly compliant
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance
> Available in varies thicknesses
> RoHS compliant
> UL recognized
Applications:
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
| Typical Properties of TIF®500-50-10US Series | |||
| Property | Value | Test method | |
| Color | Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.4 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.5) | (0.75~5.0) | ||
| Hardness | 65 Shore 00 | 27 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 7.0 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 5.0 W/m-K | ASTM D5470 | |
| 5.0 W/m-K | ISO22007 | ||
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: What thermal conductivity test method was used to achieve the values given on the data sheets?
A: A test fixture is utilized that meets the specifications outlined in ASTM D5470.
Q: Is GAP PAD offered with an adhesive?
A: Currently, Most of thermal gap pad surface has double side natural inherent tack,Non-stick surface can also be treated according to customer's requirements.
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials.
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract.
5.Free sample offer.
6.Quality assurance contract.
