Szczegóły Produktu:
Zapłata:
|
| Nazwa produktów: | Dobra wydajność izolacji Bardzo miękkie, przewodzące ciepło podkładki wypełniające szczeliny do serw | Przewodność cieplna i kompostion: | 4,0 W/mK |
|---|---|---|---|
| Słowa kluczowe: | podkładka termiczna | Aplikacja: | Procesory AI Serwery AI |
| Gęstość: | 3,1 g/cm3 | Twardość: | 65/35 Brzeg 00 |
| Kolor: | Ciemnoszary | Grubość: | 0,020 "(0,5 mm) ~ 0,200" (5,0 mm) |
| Budowa: | Elastomer silikonowy z wypełnieniem ceramicznym | Kontynuuj użycie Temp: | -45 ℃ do 200 ℃ |

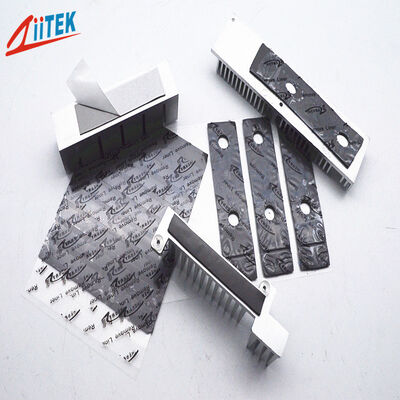

Good Insulation Performance Ultra-Soft Thermally Conductive Gap Filler Pads For AI Processors AI Servers
TIF®100-40-11E Series is a wellbalanced, general-purpose thermal pad. It offers high thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components. It is an ideal choice for addressing medium to high power heat dissipation needs, achieving the best balance between cost and performance.
Features:
> Higt thermal conductivity 4.0W/mK
> Super soft and highly compliant
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance
Applications
> Power tools
> Network communication products
> Electric vehicle batteries
> Computer CPU/GPU Cooling
> New energy vehicle power systems
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator
> AI Processors AI Servers
| Typical Properties of TIF®100-40-11E Series | |||
| Property | Value | Test method | |
| Color | Dark Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.1 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.0) | ||
| Hardness | 65 Shore 00 | 35 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 6.0 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 4.0 W/m-K | ASTM D5470 | |
| 4.0 W/m-K | ISO22007 | ||
Product Specifications
Standard Thickness:0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25mm)
Standard Size:16"X16" (406 mmX406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
