Szczegóły Produktu:
Zapłata:
|
| Nazwa produktów: | Łatwa i bezpieczna w montażu podkładka termiczna 7,5 W/MK Silikonowa podkładka chłodząca z samoprzyl | Twardość: | 50/27 Brzeg 00 |
|---|---|---|---|
| Aplikacja: | komputer przenośny | Przewodność cieplna: | 7.5W/m-K |
| Kolor: | Ciemnoszary | Ciągła temp. użytkowania: | -40 do 200 ℃ |
| Próbka: | Próbka wolna | Grubość: | 0,020 cala (0,50 mm) ~ 0,200 cala (5,0 mm) |
| Słowa kluczowe: | Silikonowa podkładka chłodząca | ||
| Podkreślić: | self-adhesive silicone thermal pad,7.5W/M.K laptop cooling pad,PC thermal gap filler |
||

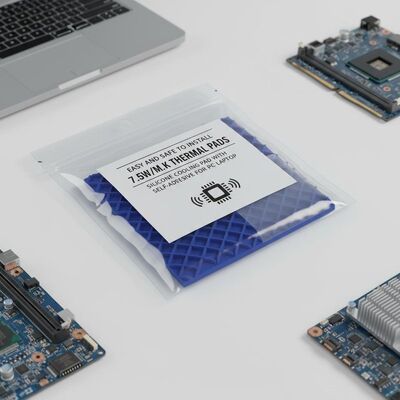

Easy And Safe To Install 7.5W/M.K Thermal Pads Silicone Cooling Pad With Self-Adhesive For PC Laptop
The TIF®500-75-11U Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress.This product combines high thermal conductivity with exceptional gel-level softness, achieving a perfectly low stress fit. It is suitable for addressing issues such as large tolerances, uneven surfaces, and the susceptibility of precision components to mechanical damage in high-precision assemblies.
Features
> High thermal conductivity
> Super soft and highly compliant
> Good insulation performance
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized
Applications
> Industrial Control
> New Energy
> Power tools
> Network communication products
> Electric vehicle batteries
> Computer CPU/GPU Cooling
> New energy vehicle power systems
> Al Servers
> Semiconductor Packaging
> Low-altitude Aircraft
> Optical Communication Products
> 5G Base Stations
| Typical Properties of TIF®500-75-11U Series | |||
| Property | Value | Test method | |
| Color | Dark gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.45 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.020~0.030 | 0.040~0.200 | ASTM D374 |
| (0.50~0.75) | (1.00~5.00) | ||
| Hardness | 50 Shore 00 | 27 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥ 5500 | ASTM D149 | |
| Dielectric Constant | 8.0 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Thermal Conductivity (W/m-K) | 7.5 | ASTM D5470 | |
| 7.5 | ISO22007 | ||
| Fire rating | V-0 | UL 94 (E331100) | |
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
