Szczegóły Produktu:
|
| Nazwa produktów: | Podkładka silikonowa do wypełniania szczelin termicznych o niskiej lotności o wysokiej przewodności | Środek ciężkości: | 3,1 g/cm3 |
|---|---|---|---|
| Przewodność cieplna i kompostion: | 4,0 W/m-K | Kontynuuj użycie Temp: | -40 do 200 ℃ |
| Twardość: | 65/35 Brzeg 00 | Budowa: | Elastomer silikonowy z wypełnieniem ceramicznym |
| Kolor: | biały | Słowa kluczowe: | Podkładka silikonowa do wypełniania szczelin termicznych |
| Aplikacja: | Do przenoszenia ciepła w zastosowaniach motoryzacyjnych i elektronicznych |
Products description

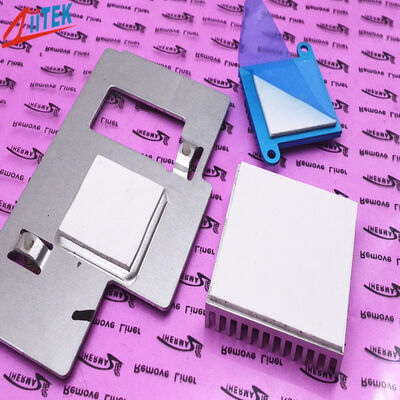

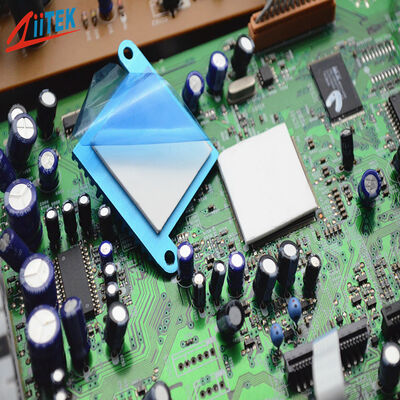

The TIF®100L 4035-06 Series is a soft, low-volatility thermal pad designed specifically for demanding application environments. While providing high thermal conductivity,
it significantly reduces the content of volatile silicones. Its high flexibility allows it to fill uneven interfaces effectivelyprotecting delicate electronic components from mechanical stress damage. This series is an ideal thermal interface material of choice for fields sensitive to volatile substances,such as aerospace,automotive electronics, optical devices, and high-end communication equipment.
Features:
> High thermal conductivity
> Low volatility
> High reliability
> Easy to install and operate
Applications:
> Automotive Electronics
> Aerospace
> Optical display
> High-end communication
> Industrial Electronics
| Typical Properties of TIF®100L 4035-06 Series | |||
| Property | Value | Test method | |
| Color | white | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.1 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.0) | ||
| Hardness | 65 Shore 00 | 35 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 7.3 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 4.0 W/m-K | ASTM D5470 | |
| 4.0 W/m-K | ISO22007 | ||
Product Specifications
Standard Thickness: 0.010" (0.25 mm)～0.200" (5.00 mm) with increments of 0.010" (0.25 mm).
Standard Size: 16"×16" (406 mmX406 mm).
The TIF series is available in custom shapes and various forms.
For other thicknesses or more information,please contact us.
