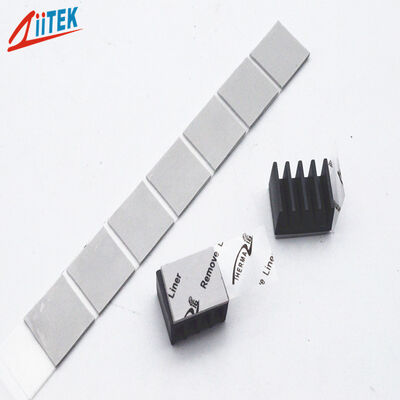

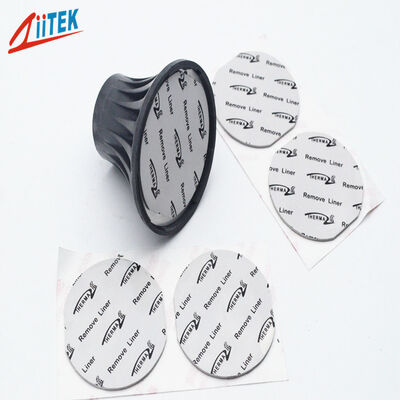

Szczegóły Produktu:
|
| Nazwa produktów: | Elastyczny wypełniacz szczeliny termicznej wzmocniony włóknem szklanym do zarządzania ciepłem w tele | Gęstość: | 2,65 g/cm³ |
|---|---|---|---|
| Funkcja: | Dobra wydajność izolacji | Grubość: | 0,25 mm ~ 5,00 mm |
| Zastosowanie: | Do zarządzania ciepłem w telewizorach LED i lampach LED | Kolor: | szary biały |
| Słowa kluczowe: | Wypełniacz termiczny | Przewodność cieplna: | 1,8 W/mK |
TIF®100-18-02s Series is a well-balanced, general-purpose thermal pad offering good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components.
| Property | Value | Test Method |
|---|---|---|
| Color | Gray white | Visual |
| Construction | Ceramic filled silicone elastomer | ****** |
| Density (g/cm³) | 2.65 | ASTM D792 |
| Thickness Range (inch/mm) | 0.010~0.020 | 0.030~0.200 0.25~0.50 | 0.75~5.00 |
ASTM D374 |
| Hardness (Shore 00) | 65 | 45 | ASTM 2240 |
| Recommend Operating Temperature (℃) | -40 to 200℃ | ****** |
| Breakdown Voltage (V/mm) | ≥ 5500 | ASTM D149 |
| Dielectric Constant @1Mhz | 4.5 | ASTM D150 |
| Volume Resistivity (Ohm-meter) | ≥1.0×10¹² | ASTM D257 |
| Thermal Conductivity (W/m-K) | 1.8 1.8 |
ASTM D5470 ISO22007 |
| Fire rating | V-0 | UL 94 (E331100) |
Standard Thickness: 0.010" (0.25 mm) – 0.200" (5.00 mm) with increments of 0.010" (0.25 mm).
Standard Size: 16"×16" (406 mm × 406 mm).
Reinforcement Fabric: FG (Fiberglass)
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening)
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive)
The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.
