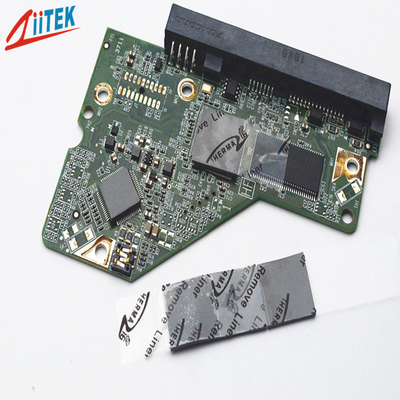

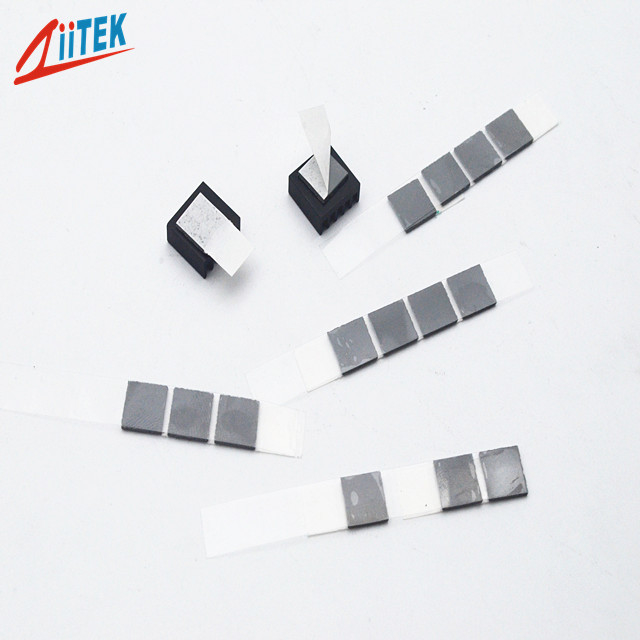

Electric Insulation Thermal Pad Thermally Conductive Silicon Protective Cushioning Material

Duży Obraz : Electric Insulation Thermal Pad Thermally Conductive Silicon Protective Cushioning Material

Szczegóły Produktu:

Place of Origin:	China
Nazwa handlowa:	ZIITEK
Orzecznictwo:	UL and RoHs
Model Number:	TIF520-20-11U

Zapłata:

Minimum Order Quantity:	1000pcs
Cena:	Negocjowalne
Packaging Details:	1000pcs/bag
Delivery Time:	3-5 days
Supply Ability:	100000pcs/day

Kontakt

Szczegółowy opis produktu

Features:	Soft and Compressible for low stress applications	Product name:	Electric Insulation Thermal Pad Thermally Conductive Silicon Protective Cushioning Material
Keywords:	Electric Insulation Thermal Pad	Application:	CPU, Display card ,heat sink
Thickness:	0.020"(0.5mm)	Hardness:	27±5 Shore 00
Fire rating:	94-V0	Thermal conductivity:	2.0W/m-K

Electric Insulation Thermal Pad Thermally Conductive Silicon Protective Cushioning Material

The TIF520-20-11U is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.

Features:

> Good thermal conductive
> Moldability for complex parts
> Soft and compressible for low stress applications
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized

Applications:

> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Display card
> Mainboard/mother board
> Notebook
> Power supply

Typical Properties of TIF520-20-11U Series
Color	Gray	Visual
Construction &Compostion	Ceramic filled silicone elastomer	******
Thickness	0.020"(0.5mm)	ASTM D374
Specific Gravity	2.7g/cc	ASTM D792
Hardness	35 Shore 00	ASTM 2240
Continuos Use Temp	-45 to 200℃	******
Dielectric Breakdown Voltage	>5500 VAC	ASTM D149
Dielectric Constant	4.5 MHz	ASTM D150
Volume Resistivity	1.0X10¹² Ohm-meter	ASTM D257
Fire rating	94-V0	UL E331100
Thermal conductivity	2.0W/m-K	ASTM D5470

Product Thicknesses: 0.020-inch to 0.200-inch(0.5mm to 5.0mm)

Product Sizes: 8" x 16%(203mm x406mm)

Individual die cut shapesand and custom thickness can be supplied. Please contact us for confirming
Safe disposal method does not require special protection. The storage condition is low temperature and dry, away from openfire and away from direct sunlight.For detailed method, please refer to the product material safety data sheet.

Packaging Details & Lead time

The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
