Szczegóły Produktu:
Zapłata:
|
| Nazwa produktów: | Dwuskładnikowy klej silikonowy do zalewania o wysokiej przewodności cieplnej do rozpraszania ciepła | Aplikacja: | Rozpraszanie ciepła w przemyśle elektronicznym |
|---|---|---|---|
| Przewodność cieplna: | 2,8 W/(m·K) | Gęstość (g/cm³): | 2,95 |
| Temperatura pracy: | -45 ~ 200 ℃ | Twardość (Shore A): | 25 |
| Wygląd: | szary | Słowa kluczowe: | Związek do gotowania |

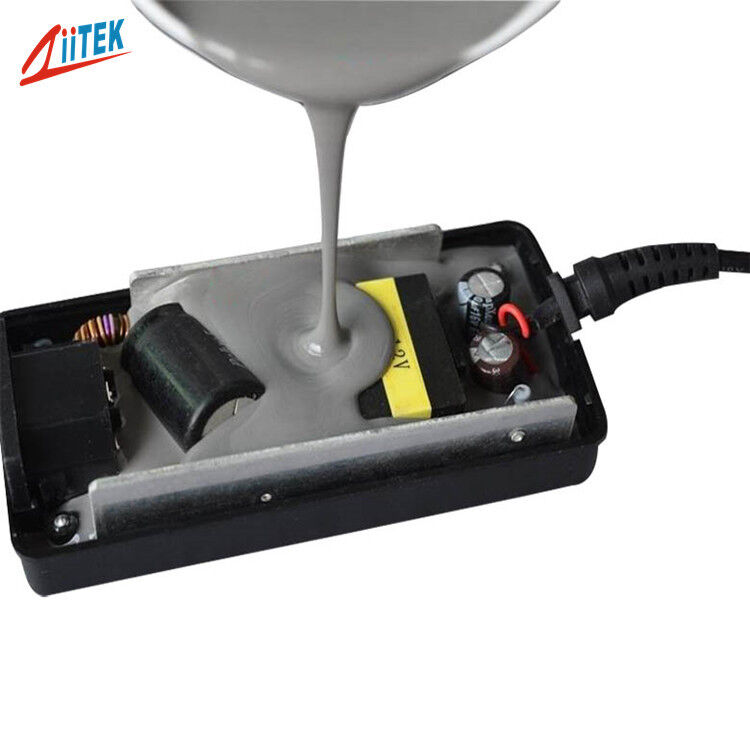

TIG®680-28AB Series is a two-component high thermal conductivity silicone sealant with room temperature curing, long working time, and flame retardant properties. This product is particularly suitable for sealing capacitors and small electronic devices. Its excellent flexibility properties enable it to provide excellent cushioning protection for coating materials. The low viscosity characteristic enables the thermal conductive sealant to cover the surface more comprehensively, greatly improving the heat transfer efficiency of the heating element or the entire printed circuit board to the metal shell or heat dissipation plate,thereby improving the performance and service life of electronic components.
Feature
> Good thermal conductivity: 2.8W/mK
> Good insulation performance
> Good elasticity
> Lower shrinkage
> Low viscosity,easy gas emissions
> Good solvent resistance and waterproof performance
> Longer working hours
> Excellent high and low temperature resistance
> No odor release during the curing process
| Typical Properties of TIG®680-28AB Series | |||
| Material Properties (Before Curing) | |||
| Property | Numerical | Test Method | |
| Color/Part A | White | Visual | |
| Color/Part B | Gray | Visual | |
| Part A Viscosity (mPa.s) | 7000 | GB/T 10247 | |
| Part B Viscosity (mPa.s) | 8000 | GB/T 10247 | |
| Mix Ratio | 1:1 | Ziitek Test Method | |
| Shelf life | 6 months(Unopened) | Ziitek Test Method | |
| Cure Schedule | |||
| Pot Life @25℃ | 30~45 mins | Ziitek Test Method | |
| Cure @70℃ | 20~30 mins | Ziitek Test Method | |
| Cure Material Properties | |||
| Color | Gray | Visual | |
| Hardness (Shore A) | 25 | ASTM D2240 | |
| Density (g/cm³) | 2.95 | ASTM D792 | |
| Recommended Operating temperature (℃) | -45 ~200 | ***** | |
| Flame Rating | V-0 | UL 94 | |
| Thermal Conductivity (W/mK) | 2.8 | ASTM D5470 | |
| Breakdown Voltage (V/mm) | ≥8000 | ASTM D149 | |
| Dielectric Constant @1MHz | 6.0~8.0 | ASTM D150 | |
| Volume Resistivity (Ohm·cm) | 1.0x1013 | ASTM D257 | |
