Szczegóły Produktu:
Zapłata:
|
| Nazwa produktów: | Wycinana silikonowa podkładka termiczna procesora o wysokiej przewodności cieplnej do serwerów AI pr | Kolor: | Szary |
|---|---|---|---|
| Przewodność cieplna: | 7.5W/m-K | Twardość: | 27 Shore 00 |
| Środek ciężkości: | 30,45 g/cc | Continuos używają temperatury: | -40 do 200 ℃ |
| Napięcie przebicia dielektryka: | ≥5500VAC | Słowa kluczowe: | silikonowa podkładka termiczna |
| Aplikacja: | Procesory AI Serwery AI |

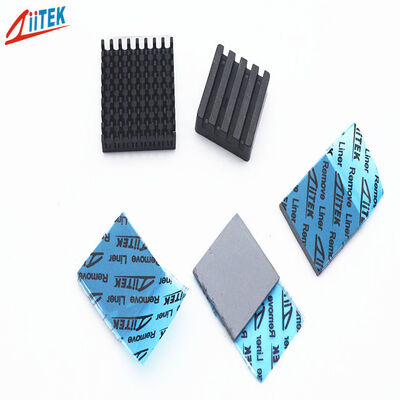

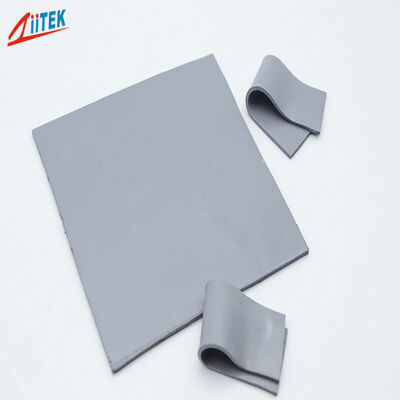

CPU High Thermal Conductivity Die Cut Silicon Thermal Pad for AI Processors AI Servers
| Typical Properties of TIF®700PU Series | |||
| Property | Value | Test method | |
| Color | Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.45 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.020~0.030 | 0.040~0.200 | ASTM D374 |
| 0.50~0.75 | 1.0~5.0 | ||
| Hardness | 70 Shore 00 | 27 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 4.5 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 7.5 W/m-K | ASTM D5470 | |
| 7.5 W/m-K | ISO22007 | ||
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
Company profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
Osoba kontaktowa: Dana Dai
Tel: 18153789196
